Spur wiring diagram. Quality a4 860 kb a3 430 kb single sheet print to your size 14 mb. Connect the cables as in the diagram ensuring that the load cable is connected to the appliance in use. All work carried out should comply with all applicable wiring regulations. This project is about how to add a spur socket or additional sockets to an existing circuit. Make sure that all three wires are secured in each terminal and avoid damaging the wires when replacing the socket. It includes advice on electrical spur wiring with diagrams so that you can find out how to wire up a spur plug socket or have a spur fitted.

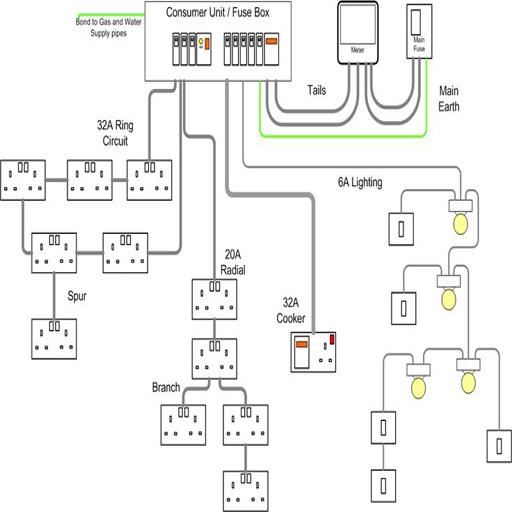

Even though the spur is the part of the same ring main circuit it is not part of the ring itself because the socket which is spurred off only has one cable going to it. Need to add a socket. Wiring diagram for ring main radial circuit wiring wiring diagrams throughout spur wiring diagram image size 969 x 513 px and to view image details please click the image. The following section m parts will be obsolete soon chapter m electrical part 1. If you look at the wiring diagram above you can see that the middle socket has another socket branched off from it. As before brown is live blue is neutral and the earth wire is bare copper with a greenyellow sleeve.
In the diagram here in and out are the existing ring cables and spur is the new cable leading to the new socket outlet. Complete wiring diagrammes in colour high quality a4 8 mb a3 65 mb good quality a4 15 mb a3 3 mb med. This is what is called a spur. Spur socket wiring how to add an electrical socket to a circuit. Read the instructions carefully before commencing installation. Incorrect installation will invalidate your guarantee.
How to install a fused spur.
