Wire a tamper switch into the tamper terminals without using a resistor. If a tamper switch is not being used permanently shunt the zone with a piece of wire.
Why We Use End Of Line Eol Resistor In Fire And Gas System
Eol resistor wiring diagram. This article does not discuss wiring for fire alarm circuits which are wired normally open no. This article will explore each of three zone wiring types. Several cables and wiring methods are referenced by installers when deploying modbus communications networks. Normally closed loops no eol. Plug in a 5ah lead acid backup battery with included battery leads battery not included 5. This is the simplest circuit and also the one with least protection from wiring faults.
Insensitive free topology wiring. Eol resistor value will vary from model to model make to make. 47k ohm fixed or 1k 10k ohm depending on resistor mode input zones. T tap star loop and mixed wiring topologies are all supported by this architecture. When you wire an alarm system whether it is addressable or conventional all wired devices as well as the loop or the conductors used in wiring must be supervised for operation and connectivity by the main panel through the eolthere are two ways to wire eols. Httpslearninstallationcouk please accept our apologies on the background music.
A resistor is just a device that impedes the flow of electricity without stopping it. End of line resistors eols are very important for circuit and loop supervision. However even though the manufacturers installation instructions show the eol resistor at the end of the circuit away from the panel installers of security systems. So what our resistors going to do is actually supervise the wiring. 15 no or nc smoke zone. Wire the hardwired siren 60vdc1a max see wiring diagram 4.

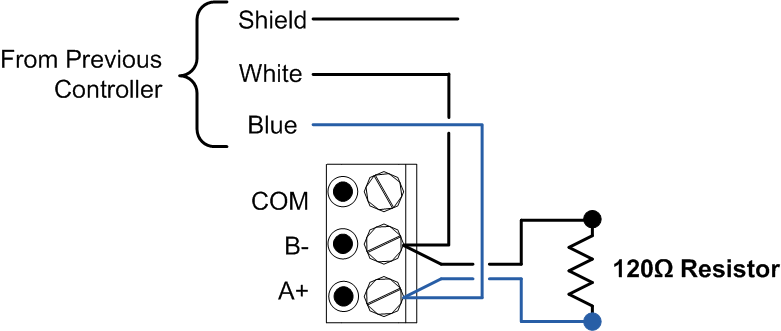

Free topology wiring reduces the time and expense of system installation by allowing the wiring to be installed in the most expeditious manner. Used for case tamper no resistor. 12vdc at 500ma max tamper zone. By installing the resistor at the farthest device on the zone the end of line you create a supervised circuit that can no longer be disabled by simply shorting its wire somewhere along the wire run between the control panel and detection device. Network wiring method network layout cable termination general cable termination rs485modbus rtu line termination resistor cable termination rs485modbus rtu line bias overview. This frees the system installer from wiring using a specific bus topology.
In this video were going to be using dscs rating which is 56k or 5600 ohms. Well for starters the eol resistor end of line resistor is supposed to go at the end of the loop as the last device for both security alarm systems and fire alarm systems. Theres different ratings of resistors and even each panel will require a differently rated resistor. Support for system sensor 2w b 2wt b 2wta b detector models should not be mixed auxiliary voltage output. 1 two wire smoke loop 10 detectors max. Eol line wiring in a galaxy honeywell system how to wire an intruder alarm system with eol wiring.
