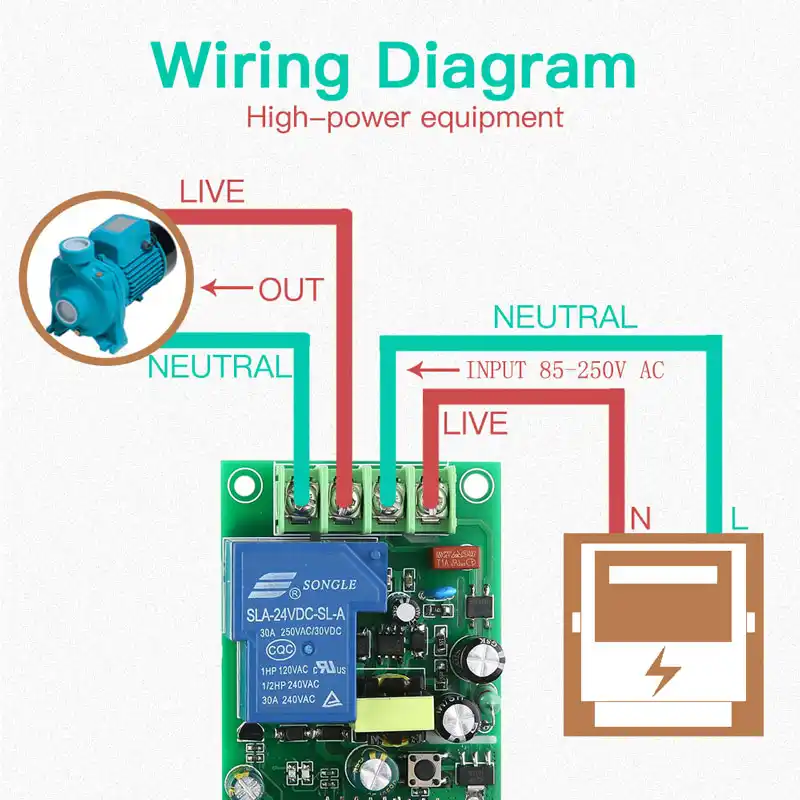

110v 220v 30a High Power Wifi Water Heater Switch Smart Home Gadgets Wireless Relay Receiver App Control With Touch Remote
Water heater switch wiring diagram. 110v wiring diagram this diagram shows the electric flow on the back of the water heater through the secondary switch to the hi limiteco to the thermostat and then to the electric element. Wiring diagrams residential electric water heaters current production 315267 000 time clock switch operates bottom element only to power supply to time clock switch off peak meter operates to power supply to off peak clock 2 wire 1 phase non simultaneous operation from 3 wire heater junction box black blue yellow to off peak or 3 phase power supply. Click on the image to enlarge and then save it to your computer by right clicking on the image. Water heater timer wiring diagram. Elements thermostats and a high temperature limit switch. Suburban water heater wiring diagram how to wire water heater pilot light arresting switch wiring diagram.
This electrical question mentions that electric utility can switch off the heater at certain times and im not sure if this is because of an energy savings program or a function of the smart meter system. To control a non continuous non simultaneous water heater using single way or one way switch we must use a 10 gauge wire size with a minimum 30 amp circuit breakerin our case we have connected the water heater directly to a 30 amperes single way switch which is protected by 30 amp circuit breaker from the main distribution board. Note that these element is 220 volts ratings and you can also 440 volts heater elements but you need to provide the line supply my mean to lines or two hot wires supply 440 volts. A wiring diagram is a simplified traditional pictorial representation of an electrical circuit. Collection of suburban water heater wiring diagram. An electric water heaters wiring diagram enables someone to completely rewire a water heater even after removing all of the wires and parts.
Note that the black wire is hot and the white wire goes to neutral. Assortment of water heater timer wiring diagram. Water heaters contain three basic electrical components. In the above diagram i shown that the upper water heater element is switched off and lower heater element is switch on. In most cases the limit switch and the thermostat share a plastic housing. Accessing the electric components to test for power.
Water heater timer controls can save energy and lower your utility bill. Controlling of water heater using single pole switch. Related queries float switch wiring diagram float switch wiring connection float switch connection with contactor float switch ka connection kaise kare contactor connection with float switch.
