Page 22 pl podłączanie przewodów lt laidai i cablaggio tr baglantılar rus электропроводка link terminals l and com3 for 230v output 230 volt ac on off com 5060hz output note. Page 1 instructions rmt 230 rmt 230t fig.
Controls Danfoss Wiring Diagram Diagram Base Website Wiring
Rmt230 wiring diagram. Hi all im looking at replacing my heating thermostat i currently have a danfoss rmt230 and would like to replace it with a digital version probably a danfoss tp7000m. 8 english location fig. 1 when the room thermostat is connected to an do not site the room thermostat in a draught in inductive load without noise suppression there direct sunlight or close to appliances giving off. 3 rmt230 rmt230 rmt230t 1 3 2 1 3 2 1 3 2 fig. The ret230p is an electronic room thermostat and requires a 3 wire connection. View online instructions for danfoss rmt230 thermostat or simply click download button to examine the danfoss rmt230 guidelines offline on your desktop or laptop computer.

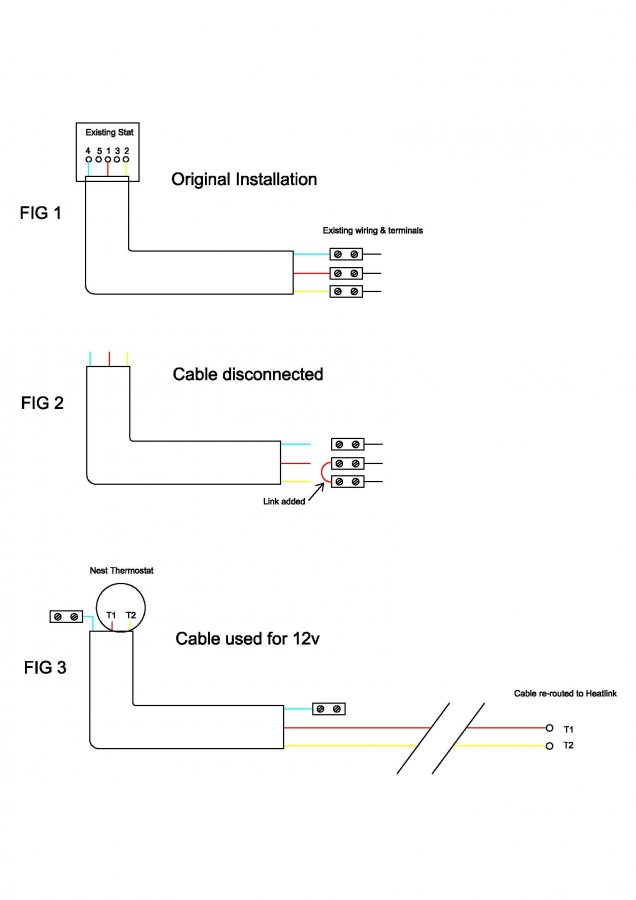

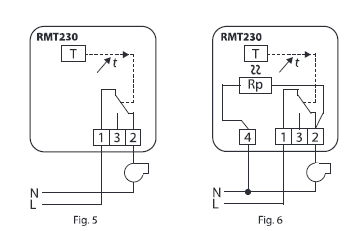

Wiring diagram for rmt230 rmt230 230v supply 4 1 3 2 rp rmt230 24 3051 1201 t n com off on. Wiring diagram for rmt230 rmt230 t 1 3 2 rmt230 star 3052 1201 com off on 230v supply. Just need wiring confirmation. I currently have the following 1 brown live 2 black with brown sleeve 345.
