3 wire 3 phase motor. For ccw rotation transpose the blue and yellow leads.
Controlling Speed Of Psc Induction Motor Questions About
Psc motor wiring diagram. Wiring diagram capacitor psc motor. See the simplified circuit diagram on the following page. Come back with the new ecm motor you disconnect the relay remove the psc motor. Ac80 ac90 ac100 single phase motors. The brown and blue wires to the ecm x13 motor were low voltage. I replace the x13 blower motor model 5sme39hxl with a psc motor operating a pcm every two years in your electrical bill compared to.
As 183 wiring diagram with switch. It is also called as a single value capacitor motor. Ac80 ac90 ac100 single phase motors. Identify the wire colors and confirm that you have a 4 wire reversible psc permanent split capacitor motor or gearmotor. Blower motor wiring diagram manual. 7 product features direct drive multi speed psc blower motor cooling or heat pump applications.
After a split phase or cap start motor is started a centrifugal switch on the shaft opens disconnecting the start winding or capacitor. Schematic shows cw rotation facing the drive end. The auxiliary winding is always there in the circuit. A psc motor uses a capacitor a device that can store and release electrical charge in one of the windings to increase the current lag between the two. Upflow downflow and horizontal blower section usable as an electric furnace control board includes a fan delay in the cooling mode and is isolated from the air stream. Ac65 ac80 ac90 ac100 three phase motors.
The connection diagram of a permanent split capacitor motor is shown below. As the capacitor is always in the circuit and thus this type of motor does not contain any starting switch. For groschopp 115 and 230 volt ac80 ac90 and ac100 single phase motors. 4 wire reversible psc motor. Psc motor typical wiring diagram for a psc motor definition and characteristics. Bodine stock motors and gearmotors will have black blue black yellow blue yellow motor leads and a green yellow ground lead.

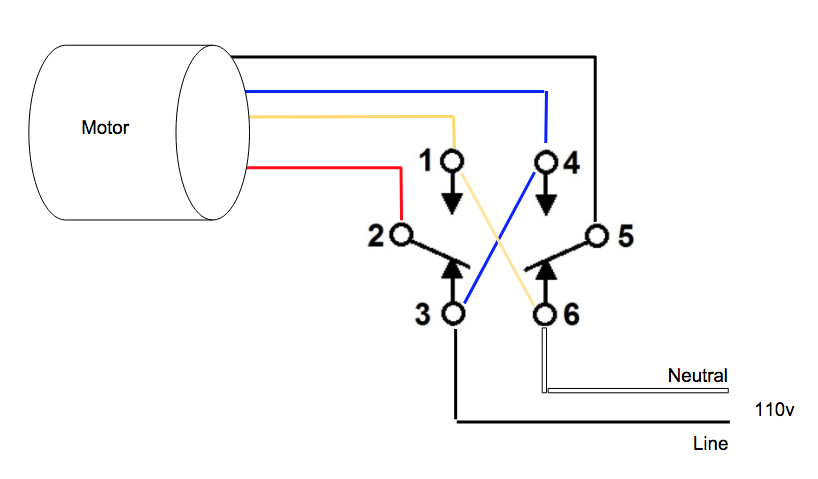

August 29 2018 april 12 2020. The motor then runs using only the run winding. Motor connection diagram for a 4 wire reversible psc. Psc means permanent split capacitor run capacitor permanently connected in series with the start winding run cap makes the start winding an auxiliary winding once the motor reaches running speed does not have a start capacitor. Here is a simple wiring diagram for accomplishing this. 4 wire reversible psc motor with a triple pole double throw switch.
