So at boiler end. Hi my wiring is deferent to how you suggest in the install guide for a dual channel receiver.
Setup Beemonitor

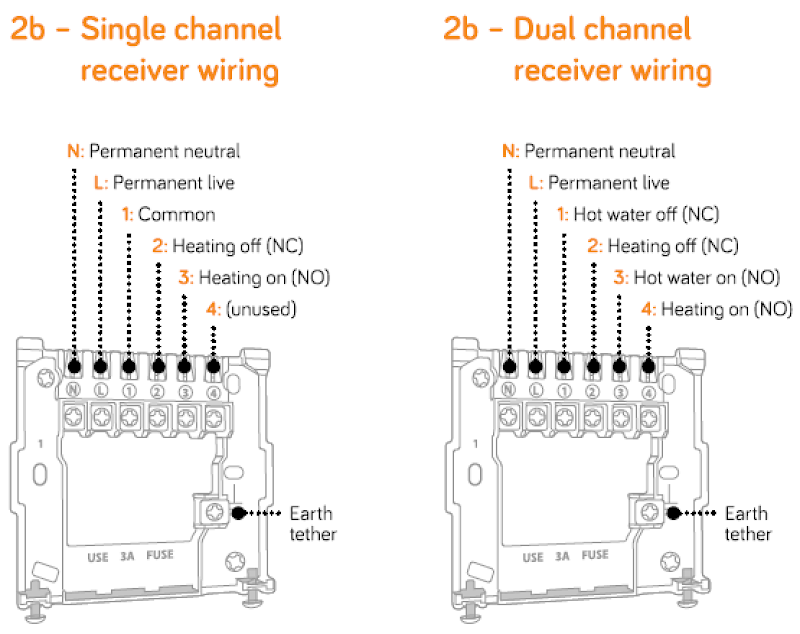

Hive receiver wiring diagram. If you do need support please contact us our opening hours are monday to friday 9am 7pm saturday 9am 5pm and sunday 10am 5pm webchat only. I thought a should go in to 1 and b should go in to 3. See pictures you can tell what one the old thermostat is. On the back of the hive receivers there is a small wiring diagram and there was something similar in the existing unit i took off and with those two i was able to work out what wires should go where. Boiler to wired thermostat. Im about to start wiring up our new hive receiver to replace an old receiver not a hive and whilst the wiring seems simple im not 100 certain where wires a and b should go.
Its just a simple set up at the min. 1 remove link from 12 at boiler. This is the old receiver obviously still wired in. So i was going to run a 3 core te from the boiler to the receiver. This means its ready to a stand off sls1 supplied separately to create connect to the hub and thermostat. Full wiring diagram for dual channel receiver.
The hive receiver is double insulated so doesnt need an earth connection. Youll find a tether on the backplate to secure an earth wire if needed. And this is the new hive receiver. I just fitted two hive receivers a two channel for heating and hot water and a single channel for underfloor heating in the kitchen. Were trained in troubleshooting the hive system once its installed but only the bg engineers are trained in the actual. Gravity fed and part pumped.
The wiring must comply to the current editions of bs7671 iee wiring regulations part p of the building regulations and any relevant technical operational procedures. If needed you can use flash amber. Weve created a guide for installing your hive active heating which you can download here. Ive followed the wiring diagram but when i press the central heating button on reciever the boiler does not fire up as it says it should in the instructions. Looking to wire up a hive receiver but never done one on a job before just finished 4 year apprentachip flathouse bashing mainly so just want to check im going to be doing it right before going ahead. Restore power to the central heating backplate remove it completely and wire in the system the receivers status light should hive receiver in its place.
I have a y plan heating system with 3 port valve and hot water tank etc. 2 brown into 2. Im just trying to wire my hive receiver.
