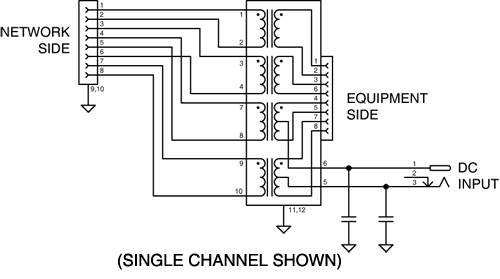

Gigabit poe wiring diagram. A wiring diagram is a simplified conventional pictorial depiction of an electrical circuit. All our wiring is now done to the 100base t4 spec which you can use with 1000base t and even 10baset networks but not the other way around. It was introduced commercially in 1989 and became ieee standard 8023 in 1983. Power over ethernet poe connector pinout 8 pin rj45 8p8c female connector at the hub. It reveals the elements of the circuit as simplified shapes and also the power as well as signal links between the tools. Poe for gigabit ethernet is going to be a little difficult as its involved with pushing the power through the ethernet magnetics and at higher current the ethernet magnetics will surely heat up or even blow up due to their ultra thin winding and higher resistance it will be interesting.
This article shows how to wire an ethernet jack rj45 wiring diagram for a home network with color code cable instructions and photosand the difference between each type of cabling crossover straight through ethernet is a computer network technology standard for lan local area network. 8 pin rj45 8p8c male connector at the cable. Power over ethernet poe is a technology described by ieee 8023af standard that allows ip telephones wireless lan access points security network cameras and other. See power over ethernet poe. Cables used should be of category 5enhanced even though category 5 cables usually works too. Built with home and small business users in mind the dgs 1005p is compact and operates silently.
Pinout of power over ethernet poe and layout of 8 pin rj45 8p8c female connector and 8 pin rj45 8p8c male connectorpower over ethernet is a technology that allows ip telephones wireless lan access points security network cameras and other ip based terminals to receive power in parallel to data over the existing cat 5 ethernet infrastructure without the need to make any modifications. With a poe ip camera switch you only need to plug the ethernet cable of all the cameras with poe into the switch connect the poe switch to the router and then power the system up. Gigabit ethernet requires all 4 pairs 8 conductors. Pinout of ethernet 1000base t gigabit ethernet and layout of 8 pin rj45 8p8c female connector and 8 pin rj45 8p8c male connector1000 base t uses all pairs for bidirectional traffic in the rj45 connector. Collection of poe switch wiring diagram. 100base t crossed cable pc to pc or hub to hub.
Depending on which scheme you use pairs 45 and 78 may be required. Power over ethernet or poe describes any of several standard or ad hoc systems that pass electric power along with data on twisted pair ethernet cabling. This allows a single cable to provide both data connection and electric power to devices such as wireless access points ip cameras and voip phones. So if you have more ip cameras with poe add a network switch to the system as shown in the wiring diagram or just turn to a poe switch instead.
