Traditional wiring for the eric clapton signature stratocaster as well as other models that use the fender mid boost circuit. Instrument service diagrams include parts layout diagrams wiring diagrams parts lists and switchcontrol function diagrams.
The Fender Tbx A Cool 2 Band Tone Control Tonefiend Com

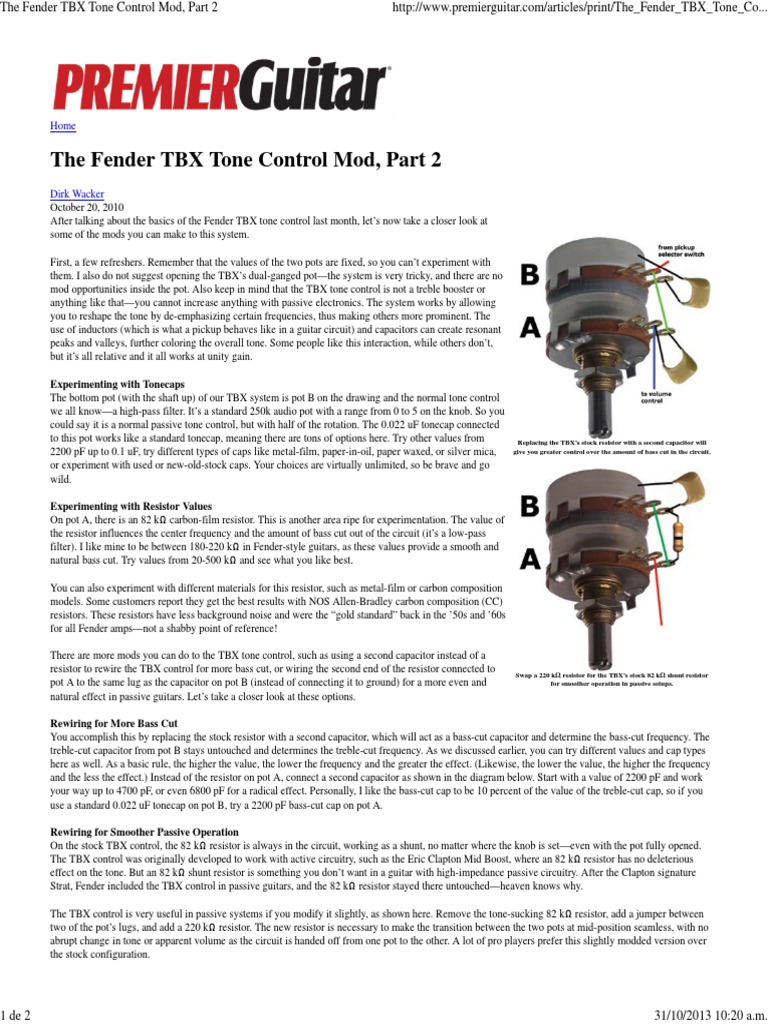

Fender tbx wiring diagram. The diagram shows you how to wire the tbx tone control on your strat. Guitar wiring diagram with three single coils 5 way lever switch one standard tone for the neck pickup and one fender tbx tone control that controls the middle and bridge pickups. Wiring diagram for the modified tbx tone control. Ready to get started. Guitar wiring diagram with three single coils 5 way lever switch one standard tone for the neck pickup and one fender tbx tone control that controls the middle and bridge pickups. Fenders tbx tone pot is almost perfectly configured to provide treble cut one way bass cut the other.
Most of our older guitar parts lists wiring diagrams and switching control function diagrams predate formatting which would allow us to make them available on this page as pdf files. If you do not find the list or diagram for your specific instrument on this page we may still be able to furnish you with a hard copy from our archive. Click diagram image to openview full size version. Typical fender american standard stratocaster wiring. The tbx control can be wired as a substitute for any normal tone control for any pickup as well as a master tone control for all pickups. Click diagram image to openview full size version.
Fender tbx wiring diagram. The tbx control can be wired as a substitute for any normal tone control for any pickup as well as a master tone control for all pickups. Fenders tbx tone pot is almost perfectly configured to provide treble cut one way bass cut the other way and a no load center position all with one knob. There are more mods you can do to the tbx tone control such as using a second capacitor instead of a resistor to rewire the tbx control for more bass cut or wiring the second end of the resistor connected to pot a to the same lug as the capacitor on pot b instead of connecting it to ground for a more even and natural effect in passive guitars. Typical fender american standard stratocaster wiring. The red wire is the input for the tbx control and the green wire is a short jumper wire connecting pot a to pot b.
Unfortunately fender doesnt wire it to do those things. Click diagram image to openview full size version. Wiring diagram for the modified tbx tone control. Strat wiring diagram with three single coils 5 way lever switch 1 volume 1 tbx tone control and the eric clapton mid boost circuit with mid boost control. If i can figure out how to post it in here you could see how they are wiried up.
