If ample voltage seems across the elcbs sense coil it will turn off the power and remain. An elcb is a specific type of latching relay that has a structures incoming mains power associated through its switching contacts so that the circuit breaker detaches the power in an unsafe conditionthe elcb notices fault currents of human or animal to the earth wire in the connection it guards.
Earth Leakage Protective Relays Brr El Rrd Series Fuji

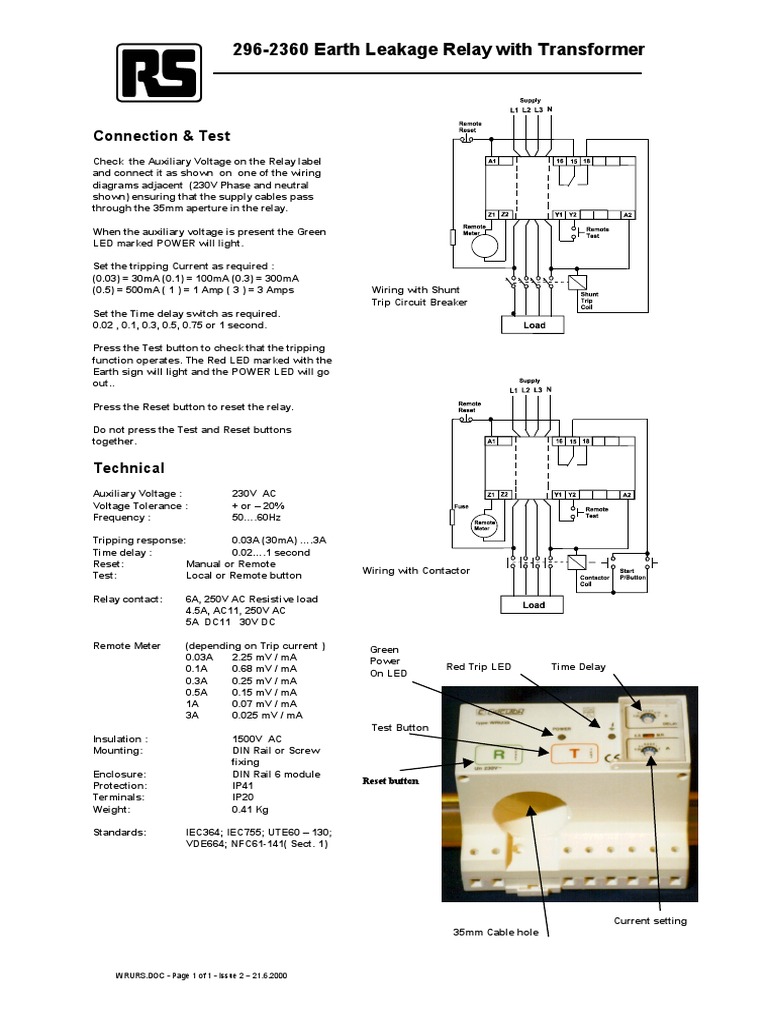

Earth leakage relay wiring diagram. Powerpoint drawing of earth fault. In this i try to give better understanding about earth leakage relay elr and core balance current transformer cbct how to wire elr and cbct with mccb and the working principle of elr. Earth leakage circuit breaker or elcb. Means it detects the earth leakage current and. Ir iy ib in 0 for 3 phase 4 wire system. If the unit fails to operate correctly check that all wiring and connections are good.
2tripping time setting potentiometer. 16 earth leakage relays technical characteristics page 16 6 and 7 wiring diagrams page 16 5 dimensions page 16 4 general characteristics earth leakage relay type a 2 output relays each with changeover contact configurable 2 tripping or 1 tripping and 1 alarm configurable fail safe prealarm and operation automatic toroid. Forc single phase applications only the. Miniature circuit breaker an overview earth leakage circuit breaker wiring earth leakage circuit breaker elcb circuit breaker wiring diagram mcb mccb elcb kt 4083 wiring diagram elcbearth leakage circuit breaker wiring diagram relay fault protection angle white png pngeggearth leakage circuit breaker diagram base site fldiagram santuarioannunziata itold vole operated elcbsworking principle of. If any current leaks from any electrical installation there must be any insulation failure in the electrical circuit it must be properly detected and prevented otherwise there may be a high chance of electrical shock if anyone touches the installationan earth leakage circuit breaker does it efficiently. Ir iy ib 0 for 3 phase 3 wire system.
For the above condition the cbct zct produces zero resultant magnetic flux. User guide for model. The earth must not pass through the ct. Tms dtl tms idmt numerical delab. 801x lect 24 rolling motion gyroscopes very non intuitive duration. Lectures by walter lewin.
35 mm wide din rail mount. Earth leakage relay din rail mounting version elr3c 10 reset 4 txio 1b o tx1 xl 1 co xo11a1 x 10 1 d o elr 3c description 1 current tripping setting potentiometer. The earth leakage relay tmc tms are micro processor numerical based protection devices designed to recognize low level leakage or unbalanced. Connection diagram 120mm bzct210 50m max. Earth leakage relays earth leakage relays. The elr 3c maintain all the basic characteristics of the din 96x96 mm series although its reduced.
Earth leakage relay elr transmits a signal to activate the trip coil of the mccbacbocb contactor in the event of earth leakage resulting in automatic. 3 microswitches for programming.
