Back wiring the keypads to the control panels is relatively straightforward. Place keypad into hooks on the backplate and swing down to engage.
Honeywell How To Wire Your Alarm Panel
Dsc keypad wiring diagram. Dsc power series 1616 1832 and 1864 basic wiring back to main wiring an alarm system can seem intimidating if youve never done it before but its really quite simple and is all low voltage. Learn to wire a dsc alarm panel in five minutes. The g green y yellow b black and r red are the standard 4 colors for alarm wiring. For multiple keypads run each wire from the keypad back to the control panel and simply place multiple wires in each connection. Alarm system store 11337 views. Mount and wire keypad 1.

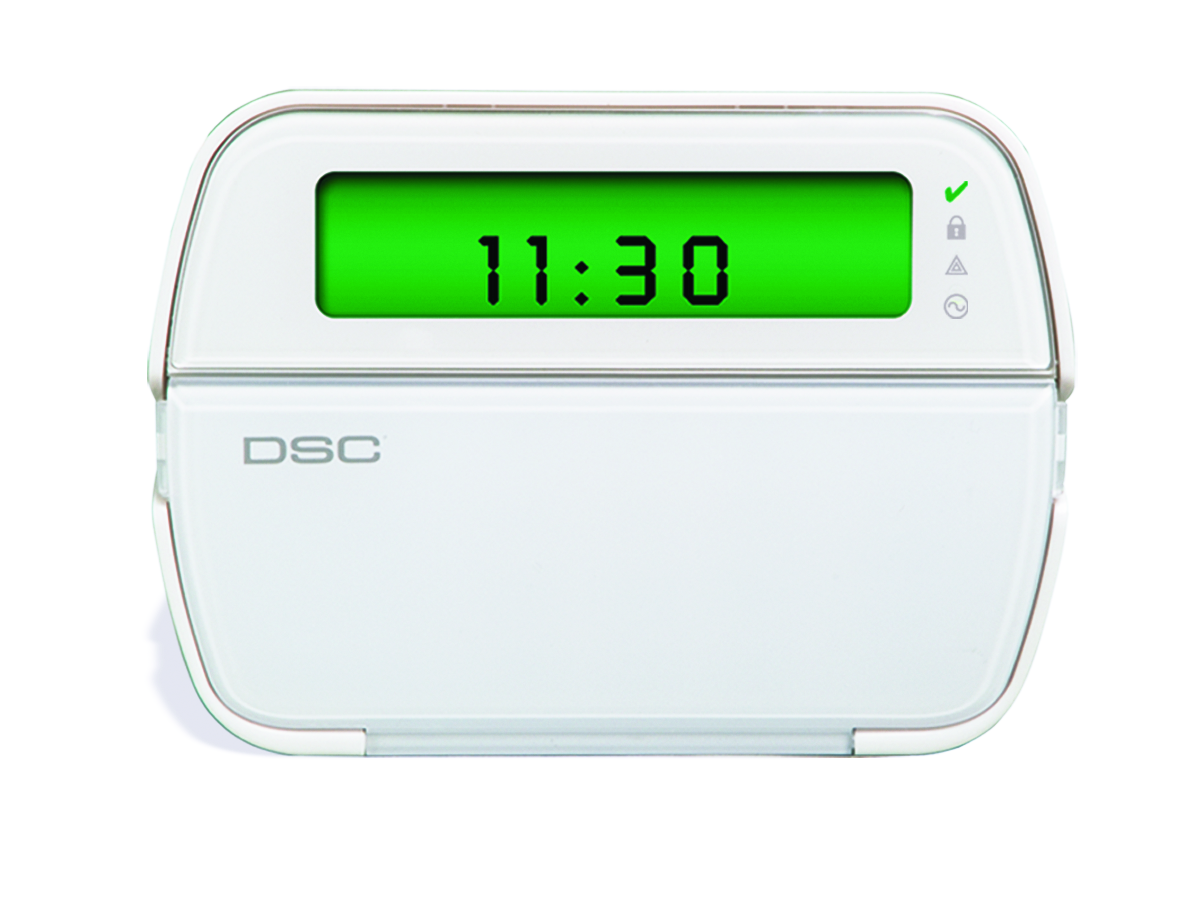

Run wire through wiring slot or kn ockouts. All keypads will connect in parallel with the four keybus terminals. The dsc z model keypads contain a 5th z connection that can be used to. Lcd5501z32 433 v42 installation manual french powerseries fixed message lcd keypad with integrated wireless receiver lcd5501z lcd5511 installation manual spanish portuguese english. Connect keybus and pgmzone wiring to keypad. Red blk yel grn.
Dsc wiring diagram posted at may 19 2020 755 by admin in design beloved readers when you are hunting the brand new dsc wiring diagram circuitry layout collection to read this day dsc wiring diagram can be your referred circuitry diagram. Secure keypad to wall using mounting holes. Dsc powerseries neo alarm com module programming wiring things you need to know duration. Use all 4 screws provided unless mounting on a single gang box. The front plastic and allow access for wiring. In the video below we show you the basics of wiring a dsc alarm system with typical devices used on any installtion.
And each keypad will also have similarly named terminals to ma. The terminals on the keypad are labeled z g y b r. These terminals are named after the standard colors of 22 gauge 4 conductor alarm wire.
