Dmx lighting control wiring diagram. Star wiring is only allowed in conjunction with an opto splitter. All wiring must be in a continuous run and daisy chained. This document explains the best practices in dmx wiring. Usai lighting dmx dimming solutions. B b wa 24v dc 24v dc gg100e 24 unv wire is either white or red depending on. Dmx sstem installation guide wiring installation 3.
Pdf lightsync motor controller wd0600 wiring diagrams. Pdf file below a typical dmx universe is shown. Unlike dali dmx data signals are polarized and the fixture to fixture connections must always be daisy chained. Pdf lightsync touch switch input module wd0400 wiring diagrams. Pdf lightsync dmx driver wd0611 wiring diagrams. Scroll down to download.
31 connect lead wires from light fixture or tape as applicable to the product being installed. Led led led led led r r c g g w flex rgbaw flex vw flex single color flex rgb flex wiring. Cable shield may be grounded at one end only preferably at the control console. It is available with a wide range of usai lighting fixtures. No tees are permitted. Maximum cable length is 1800 ft when used for dmx only.

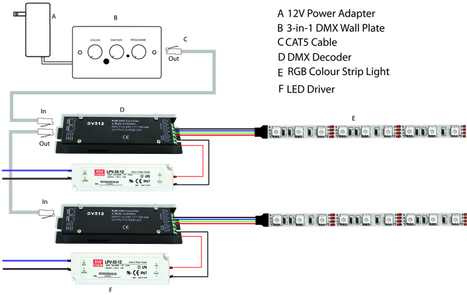

When working with a lighting console whether its a pc based or hardware the console will come with a dmx outputa dmx output sends out a signal to communicate with lighting fixtures. A typical dmx wiring diagram is shown below. Dmxrdm is a robust and reliable system for lighting control. The daisy chain is a simple wiring method where you wire each fixture looping out of the previous fixture to create a line of fixtures connected back to the console.
