Why dali lighting controls might be better than led lighting duration. Dali wiring up to 64 dali lamps per network 16 groups within each network and 16 scenes per group diagram 2.
Dali Dimming Solutions Usai

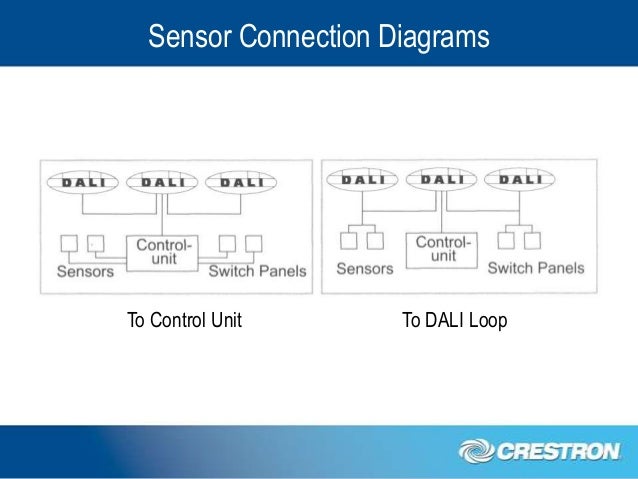

Dali lighting control wiring diagram. Digital addressable lighting interface dali is a trademark for network based products that control lightingthe underlying technology was established by a consortium of lighting equipment manufacturers as a successor for 1 10 v 010 v lighting control systems and as an open standard alternative to several proprietary protocols. A wiring diagram is a streamlined conventional pictorial representation of an electric circuit. To connect the dali wiring to the main light source you will need a ground wire a main wire a shielded wire and two wires from the controller. The same setup can be used for dali lighting. Dali lighting control mc module demo 02 duration. The line voltage and bus ba r are usually routed in the same cable found in the controller.
The five wires mentioned make up 5 core cables which include neutral earth live or hot and two dali wires. Refer to our dali concepts page for more information. Dali lighting wiring diagram put simply the lights are wired according to the australian electrical standards with an additional twin run to accommodate full dali control. The dali dali 2 and d4i trademarks are owned by the. Typical dali layout fluorescent light emergency light downlight dali network boardroom showroom. Rather several must be linked together to create a.
It shows the components of the circuit as simplified shapes and also the power and also signal connections in between the gadgets. It reveals the parts of the circuit as streamlined shapes and also the power as well as signal links between the devices. Led drivers and ballasts are connected using class 1 inside the conduit or class 2 outside the conduit wiring to make up a loop of no more than 64 led drivers or ballasts. One individual network isnt enough to cover an entire building. A wiring diagram is a streamlined traditional pictorial depiction of an electrical circuit. Because all dali fittings are supplied with a switched active supply there is no added need for any extra circuit breakers or wiring.
Dali driver wiring tutorial duration. Dali lighting control wiring diagram sample collection of dali lighting control wiring diagram. Due to the fact that the dali wires are not selv normal wiring rules apply and this allows. Each is given an address in the dali system and the loop is connected to a dali control device. Variety of dali lighting control wiring diagram. Dali dali dali wiring consists of 2 control wires with a current limited power supply supplying a maximum current of 250ma.
Dali emergency lighting or mixture of dali and dali emergency lighting.
