Used the references and images here to wire my 8274 up the past two nights. Currently available in 12v only please note the voltage of the contacter denotes the voltage.
Warn Switch Wiring Diagram Fordok 2011 Rmnddesign Nl
Albright winch solenoid wiring diagram. Warn winch wiring diagram solenoid arctic cat warn winch solenoid wiring diagram warn 2500 winch solenoid wiring diagram warn winch solenoid wiring diagram atv every electrical structure is made up of various distinct pieces. It reveals the elements of the circuit as streamlined forms and also the power as well as signal connections in between the gadgets. Installed with a smittybilt xrc8 in this case. Mounted my contactor inside the engine bay on the ds outer fender and used a 12voltguy in cab control kit to make the angry pixies run around. Available exclusively from gigglepin these units are water and shock proof. A wiring diagram is a simplified traditional pictorial depiction of an electrical circuit.

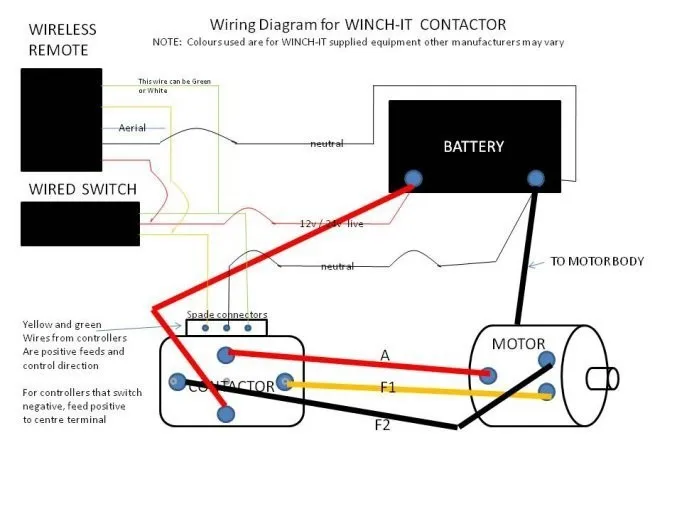

Quick demo on how to wire up the cheap universal 500 amp winch solenoids that can be found on ebay and amazon. Variety of warn winch wiring diagram 4 solenoid. Albright sherpa 4x4 winch solenoid wiring diagram dc88p. Click on the link below to open a larger image of the albright solenoid albright contactor wiring. Bumping this thread because its an awesome guide for wiring up an albright or superwinch contactor. Each component ought to be set and connected with different parts in particular manner.
Otherwise the arrangement will not work as it should be. Dc182 albright the ultimate. Tested by gigglepin 4x4 to simplify the wiring on your winch these contactors boast mega size internals unequalled in any other albright contactor. Gigglepin 4x4s pro series heavy duty albright contactor. Pdf created with deskpdf pdf writer trial.
